Description

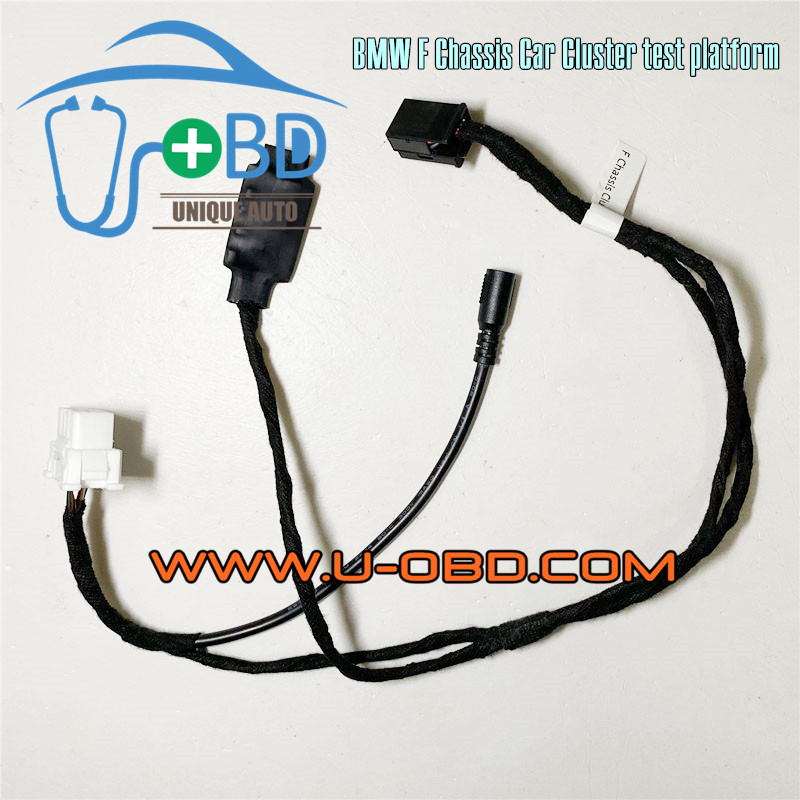

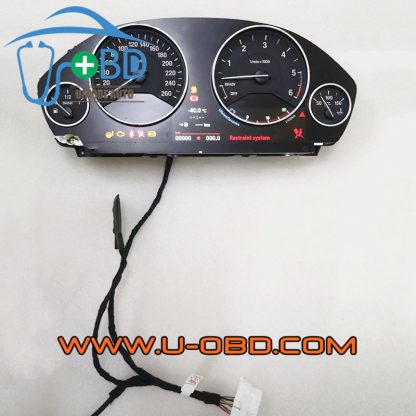

BMW F Chassis F Series Car Instrument cluster bench power on dashboard test platform

Applied to power on the BMW F series car instrument cluster on bench.

Note: No fit the F40 cluster, The wiring diagram is different.

Clusters with fiber optical port of the F series can light up and test, but the OBD port can not communicate.
